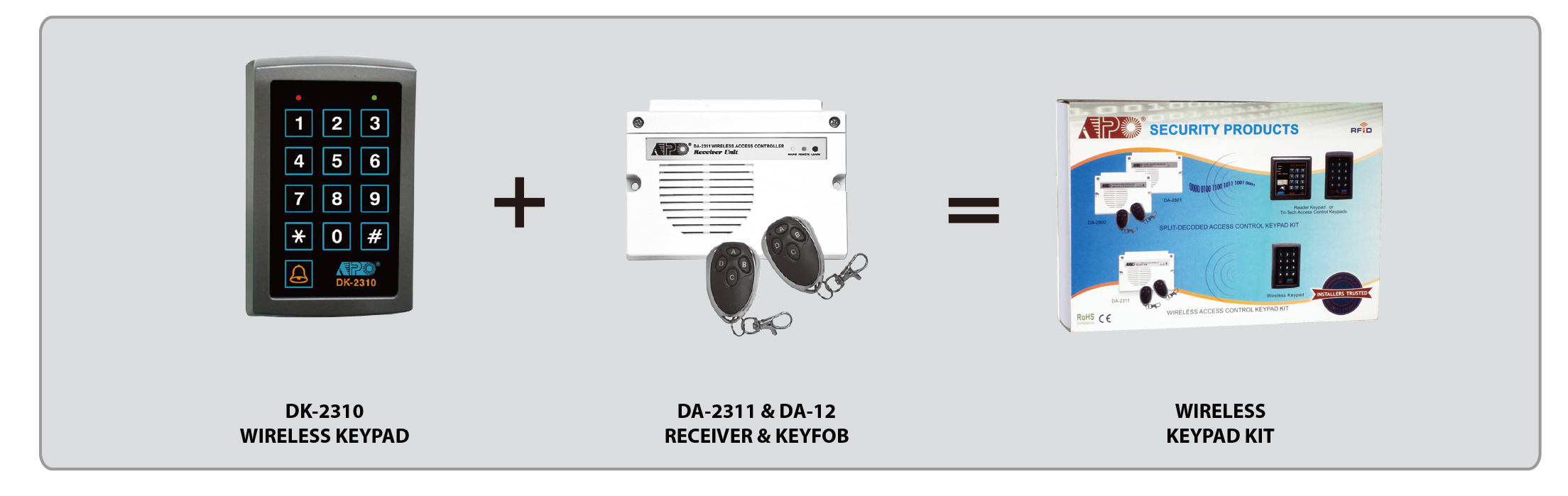

The wireless keypad kit is supplied with one DK-2310 wireless keypad, one DA-2311 decoder receiver and two DA-12 remote control keyfobs in one package for easy marketing and customer selection convenience. The system provides remote control of door lock, auxiliary equipments and door chime; or even as controller of a garage door opener. It is a flexible and compact access control system for home and office applications.
See “Features & Specifications” details on the DK-2310, DA-2311 & DA12 data sheets.

DK-2310 -- WIRELESS KEYPAD

FEATURES
•  Compatible with DA-2311, DA-2800 & AD-2322 Decoder Receivers
•  Four Control Channels for Outputs 1, 2, 3 & Door Chime
•  CE-R&TTE and FCC Approval
•  30 User Codes of 4-8 Digits for Controlling Output 1, 2 & 3
•  10 Visitor Codes for Temporary Staff or Visitors
•  Super User Code for System Inhibit after Office Hours or Nobody at Home
•  Master Code for Programming Authorization
•  Over 1 Million Non-repeated Keypad IDs
•  Operation Frequency: 433 Mhz
•  Control Distance: 50 Meters in Open Space
•  Operation Voltage: 9V Alkaline Battery (Battery Not Included)
•  Operating Current: 10uA (Quiescent), 10mA (Transmitting)
•  Weatherproof, IP-55, Indoor or Outdoor Installation
•  Tact-switch Flat Keypad. ABS Plastic Housing
•  Operating Environment: -20Deg C to +70 Deg C; 5-95% Relative Humidity
•  Dimensions: 126.5(H) X 75.5(W) X 35-40(D) mm
•  Weight: 208gs

DA-2311 -- DECODER RECEIVER
DA-2311 is a 4-channel decoder receiver designed to work with the wireless keypad (DK-2310 and keyfob (DA-12) to build up a wireless access control system.
It decodes the commands of the four channels from the keypad and or keyfob to control its master relay output, the two auxiliary outputs and the built-in door chime.
DA-2311 can also work independently with the two supplied wireless keyfobs and by connecting an optional egress button and door bell button to it to make a compact access control system for home or office applications.

FEATURES
•  Dedicated Receiver for DK-2310 Wireless Keypad and DA-12 Keyfob
•  High Sensitivity 433Mhz Super-heterodyne Receiver
•  CE-R&TTE and FCC Approval
•  Serves Maximum 40 Wireless Keypads and/or Keyfobs
•  Control Distance: 50 Meters (Keypad); 40 Meters (Keyfob) approx. in Open Space
•  Compatible with Fail-safe and Fail-secure Door Locks
•  Form C Relay with Contact Rating of 5A/24VDC for Output 1
•  Open Collector for Auxiliary Outputs 2 & 3
•  Built-in Door Chime Operated Remotely Or by Wired External Button
•  Connection Terminals for External Egress Button and Bell Button
•  Operation Voltage: 12-24VDC, Auto Adjusting
•  Operating Current: 60mA (Quiescent); 90mA (Output Relay Active)
•  Operating Environment: -20 Deg C to +70 Deg C; 5-95% Relative Humidity
•  ABS Plastic Housing, Indoor Installation Only
•  Dimensions: 32.5(H) X 120(W) X 87(D) mm
•  Weight: 250gs
