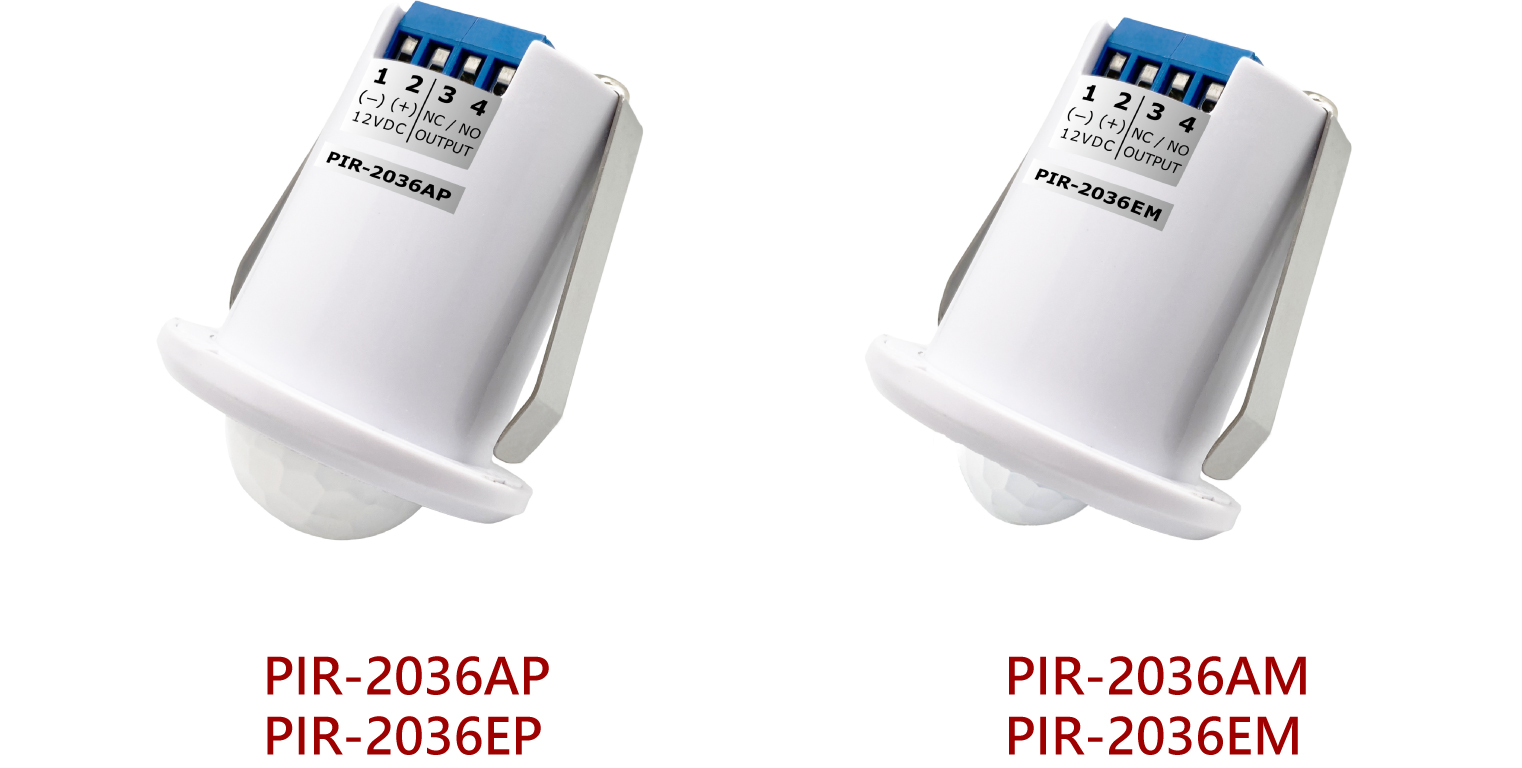

Ordering Number:‍

‍‍PIR-2036AP – for Intrusion Alarm System, Popular Lens (Φ=23 mm)
PIR-2036AM – for Intrusion Alarm System, Mini Lens (Φ=17.3 mm)
PIR-2036EP – for Energy Saving System, Popular Lens (Φ=23 mm)
PIR-2036EM – for Energy Saving S‍ystem, Mini Lens (Φ=17.3 mm)

 ‍

Detection Pattern:
PIR-2036AP & PIR-2036EP -- Conic‍al Pattern Diameter = 8.0m

PIR-2036AM & PIR-2036EM -- Conical Pattern Diameter = 6.0m

Features:
• High-Quality Low Noise Quad-Element Pyro-Sensor with 6-14μM Spectral
• Alternate Polarity Single / Dual Pulse Counting Signal Processor
• Security Control Logics Integrated in Proprietary MCU
• On-Board DIP Switch for Feature Settings
• Walk-Test LED Selectable for ON, OFF, or 30-Minute Auto OFF after Power-UP
• On-Board Terminal Block for External Wiring Connections
• (N.C.) / (N.O.) Alarm Output Dry Contact in Series with 10 Ohm Resistor
• Flush-Mount on Ceiling without Screw

Specifications:‍
• Operation Voltage         : 12VDC Nominal, 8-16VDC
• Current Consumption    : 15mA Typical at 12VDC
• Power-up Delay             : 2 Minutes with LED Indication
• Detection Range            : 6/8M at 25°C
• Alarm Output Time        : 3 Seconds
• Operation Temperature : -10°C C to 55°C
• Relative Humidity          : 95% Non-condensing
• Weight                           : 30gm net
