INTRODUCTION

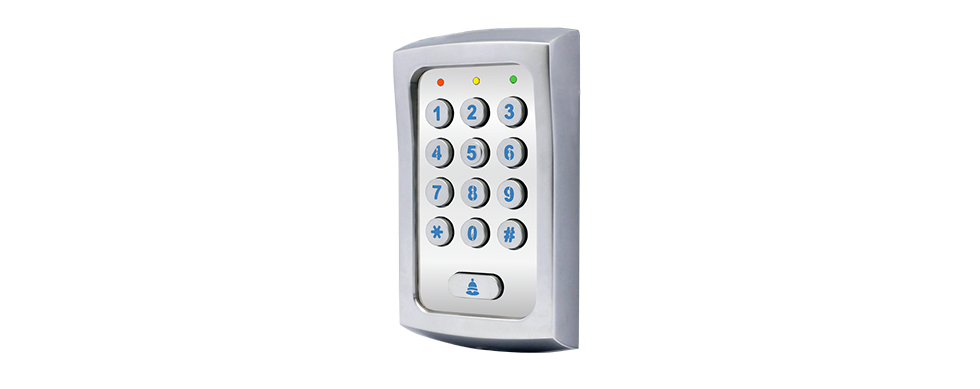

DK2835 is a self-contained two output relay, vandal resistant and weatherproof keypad. It has been designed for full feature stand alone access control applications.

It is expandable to work with an optional decoder (DA-2800 or DA-2801) for high security split-decoded operation. The keypad can plug in Wi-Fi Module (AP-02) as a Wi-Fi Keypad.

It is also compatible with the auxiliary card reader (AR-2802) and the auxiliary keypad readers (AR-2806, AR-2807 and AR-2809) for upgrading a stand alone or split-decoded system to multi-station operation.

The keypad is ideally for door strike and alarm arm-disarm controls. It is also a programmable industrial timer (from 1 second to over 24 hours) for automatic operator system.

DK-2835 has two relay outputs.

Demo Video: https://fb.watch/9hP4CdHEE-/

Output Relay 1 -- 2A Rating N.C. or N.O. Contact for Door Lock Actuation Control

Output Relay 2 -- 2A Rating N.C. or N.O. Contact for External Door Bell Actuation Control

 FEATURES

• Dual Relay Output Full Feature Digital Keypad for Door Lock Control and Door Bell actuation

• 12-24V DC Auto Adjusted Wide Operation Voltage Range

• Built-in Real-Time-Clock Controls The Start and Stop Times in Daily Operation

• Stand-alone, Split-decoded and Multi-station Tri-Tech Operations

• Compatible with The Auxiliary Reader, Auxiliary Keypad and Split-decoder for System Expansion Simply with Single Wire Connection of  Their Common Data I/O Bus

• Accepts 125 Khz E M Card Operation Via Optional Auxiliary Card Reader

• Compatible with Fail-safe or Fail-secure Electric Door Lock

• 2A/24VDC Contact Rating Form C Relay for Output 1 and Door Bell Control

• Built-in Control Logic Circuit for High Security Dual Door Inter-lock System

• Timing Re-lock or Auto Re-lock for The Door After Entry Prevents“Tail-gate”Follower

• Door Forced Open Warning and Door Propped-up Warning

• Maximum 1,000 Users for Controlling Output 1 and 100 Users for Outputs 2

• Multi-task Super User Code for Inhibiting (Refuse Access), Overriding Door Lock (Keep Door Open); and Operating The Outputs at Any Time and under Any Condition for Safety

• Duress Code for Door Opening and at The Same Time Reporting The Event of Duress

• 50 Visitor Codes for Temporary Workers and Visitors, Which Expire after Use or The Programmable Time of 1-99 Hours

• Three Programming Options for System Safety Lock-up after Successive False Code Entry

• Outputs Are Configurable with 1-99999 Seconds Auto Reset Mode or Start / Stop Mode.

• Auto or Manual User Code Entry Mode for User Convenience And Security Enhancement

• Pacifier Tone And Door Open Announcer Can Be OFF for Silent Environment

• Standby Flashing LED Indicator Can Be OFF for People Do Not Like Flashing LED at Night

• Four Egress Delay and Warning Options for User Convenience and Security Enhancement

• Alarm Output for Triggering Optional Alarm Equipment

• Built-in Tamper Switch with N.C. Dry Contact

• Vandal Resistant Weatherproof Keypad with Back-lit Metal Key Buttons

• Die-Cast Zinc Alloy Protection Bracket for Surface Mount on Wall compatible with U.S. and European Gang Box

• Wi-Fi Module can be plugged in for more features

 SPECIFICATIONS

• Operating Voltage:

12V-24V DC, Auto adjusting

• Operating Current:

20mA (quiescent) to 90mA@12VDC

10mA (quiescent) to 45mA@24VDC

• Storage and Operation Temperature:

-20 C to +70 C

• Storage and Operation Humidity:

5-95% relative humidity non-condensing

• Working Environment & Ingress Protection:

All weather, IP-65

• Number of Users:

Output 1 – 1,000 (User Codes) + 50 Duress Codes

• Number of Visitor Codes:

50, programmable for one time or with time limit

• Timings for Code Entry:

10 seconds waiting for next digit entry

• The Timers:

1-99,999 Seconds (Over 24 Hours possible) Independent Programmable Timers for O/P 1

• Egress Button:

Programmable for Instant, Delay with Warning, Warning+Alarm

Momentary or Holding Contact for Exit Delay

• Input Sensing Terminals:

a) Door position, b) Egress, c) O/P 1 inhibit

• Output Control Terminals:

Transistor Open Collector 24VDC/100mA sink Max for the following outputs

a) Duress, b) Alarm, c) Inter-lock

• Output Contact Ratings:

Output Relay 1 – N.C. or N.O. dry contact, 2A/24VDC Max.

Output Relay 2 – N.C. or N.O. dry contact, 2A/24VDC Max. (Bell)

Tamper Switch – N.C. dry contact, 50mA/24VDC Max.

• Dimensions:

144(H) X 78(W) X 29/32(D)mm

• Weight:

370g net

• Housing:

Die-Cast Zinc Alloy Protection Bracket

• Faceplate Material:

Stainless Steel

Specifications are subject to change for modification without notice
