INTRODUCTION

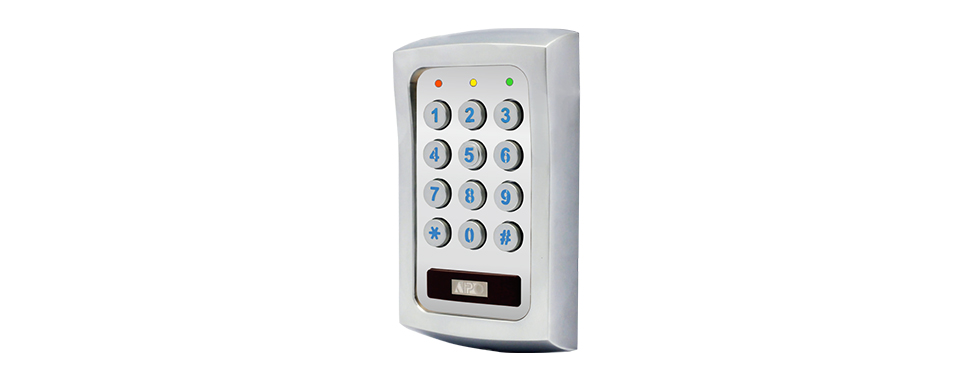

DK-2836 is a self-contained two output relay, vandal resistant and weatherproof keypad. It combines digital keypad and proximity EM card reader in one unit. The keypad can plug in Wi-Fi Module (AP-02) as a Wi-Fi Keypad.

The keypad has been designed for full feature stand alone access control applications.

It is expandable to work with an optional decoder (DA-2800 or DA-2801) for high security split-decoded operation.

It is also compatible with the auxiliary card reader (AR-2802) and the auxiliary keypad readers (AR-2806, AR-2807 and AR-2809)

for upgrading a stand alone or split-decoded system to multi-station operation.

The keypad is ideally for door strike and alarm arm-disarm controls. It is also a programmable industrial timer (from 1 second to over 24 hours) for automatic operator system.

Two versions are available for DK-2836. They are denoted with a suffix letter “A” & “B”

Demo Video: https://fb.watch/9hP4CdHEE-/

DK-2836A (Standard Version):

Output Relay 1 – 2A Rating N.C. or N.O. Contacts for Door Lock Actuation Control

Output Relay 2 – 2A Rating N.C. or N.O. Contacts for Auxiliary Device Control

DK-2836B (Door Bell Button Version):

Output Relay 1 – 2A Rating N.C. or N.O. Contacts for Door Lock Actuation Control

Output Relay 2 – 2A Rating N.C. or N.O. Contacts for External Door Bell Actuation Control

 FEATURES

• Dual Relay Output Full Feature Digital Keypad for Door Lock and Equipment Controls

• 12-24V DC Auto Adjusted Wide Operation Voltage Range

• Built-in Real-Time-Clock Controls The Start and Stop Times in Daily Operation

• Stand-alone, Split-decoded and Multi-station Tri-Tech Operations

• Compatible with The Auxiliary Reader, Auxiliary Keypad and Split-decoder for System Expansion with Single Wire Connection of Their Common Data I/O Bus

• User Code, EM Card and EM card + User Code Concurrent Operations

• Compatible with125 Khz Manchester 64-bit EM4100 & EM4200 EM Cards and Keyfobs

• 2A/24VDC Contact Rating Form C Relay for Output 1 and Output 2

• Compatible with Fail-safe or Fail-secure Electric Door Lock

• Built-in Control Logic Circuit for High Security Dual Door Inter-lock System

• Timing Re-lock or Auto Re-lock for The Door After Entry Prevents “Tail-gate” Follower

• Door Forced Open Warning and Door Propped-up Warning

• Maximum 1,000 Users for Controlling Output 1 and 100 Users for Outputs 2

• Multi-task Super User Code for Inhibiting (Refuse Access), Overriding Door Lock (Keep Door Open); and Operating The Outputs at Any Time and under Any Condition for Safety

• Duress Code for Door Opening and at The Same Time Reporting The Event of Duress

• 50 Visitor Codes for Temporary Workers and Visitors, Which Expire after Use or The Programmable Time of 1-99 Hours

• Three Programming Options for System Safety Lock-up after Successive False Code Entry

• Outputs Are Configurable with 1-99999 Seconds Auto Reset Mode or Start / Stop Mode.

• Auto or Manual User Code Entry Mode for User Convenience And Security Enhancement

• Pacifier Tone And Door Open Announcer Can Be OFF for Silent Environment

• Standby Flashing LED Indicator Can Be OFF for People Do Not Like Flashing LED at Night

• Four Egress Delay and Warning Options for User Convenience and Security Enhancement

• Alarm Output for Triggering Optional Alarm Equipment

• Built-in Tamper Switch with N.C. Dry Contact

• Standard and Door Bell Button (Using Output 2 as Bell Actuation Contact) Versions Available

• Vandal Resistant Weatherproof Keypad with Back-lit Metal Key Buttons

• Die-Cast Zinc Alloy Protection Bracket for Surface Mount on Wall compatible with U.S. and European Gang Box

• Wi-Fi Module can be plugged in for more features

 SPECIFICATIONS

• Operating Voltage:

12V-24V DC, Auto adjusting

• Operating Current:

62mA (quiescent) to 130mA@12VDC

30mA (quiescent) to 61mA@24VDC

• Storage and Operation Temperature:

-20 C to +70 C

• Storage and Operation Humidity:

5-95% relative humidity non-condensing

• Working Environment & Ingress Protection:

All weather, IP-65

• Number of Users:

Output 1 – 1,000 (Codes and/or Cards) + 50 Duress Codes

Output 2 – 100 (Codes and/or Cards) + 10 Duress Codes (DK-2836A)

• Proximity Card:

Standard EM Card or Keyfob, 125Khz, Manchester 64-bit

• Number of Visitor Codes:

50, programmable for one time or with time limit

• Timings for Code Entry and Card Reading:

10 seconds waiting for next digit entry

30 seconds waiting for code entry after card reading

• The Timers:

1-99,999 Seconds (Over 24 Hours possible) Independent Programmable Timers for O/P 1 & 2

• Egress Button:

Programmable for Instant, Delay with Warning Warning+Alarm

Momentary or Holding Contact for Exit Delay

• Input Sensing Terminals:

a) Door position, b) Egress, c) O/P 1 inhibit

• Output Control Terminals:

Transistor Open Collector 24VDC/100mA sink Max for the following outputs

a) Duress, b) Alarm c) Inter-lock

• Output Contact Ratings:

Output Relay 1 – N.C. or N.O. dry contacts, 2A/24VDC Max.

Output Relay 2 – N.C. or N.O. dry contacts, 2A/24VDC Max.

Tamper Switch – N.C. dry contact, 50mA/24VDC Max.

• Dimensions:

144(H) X 78(W) X 29/32(D)mm

• Weight:

380g net

• Housing:

Die-Cast Zinc Alloy Protection Bracket

• Faceplate Material:

Stainless Steel

Specifications are subject to change for modification without notice
