Ordering Number:
HA-278-A (Standard Version)
HA-278-B (Build in Alarm Voice Message Module)
HA-278-C (Build in Cellular Module)
HA-278-D (Build in Alarm Voice Message & Cellular Module)

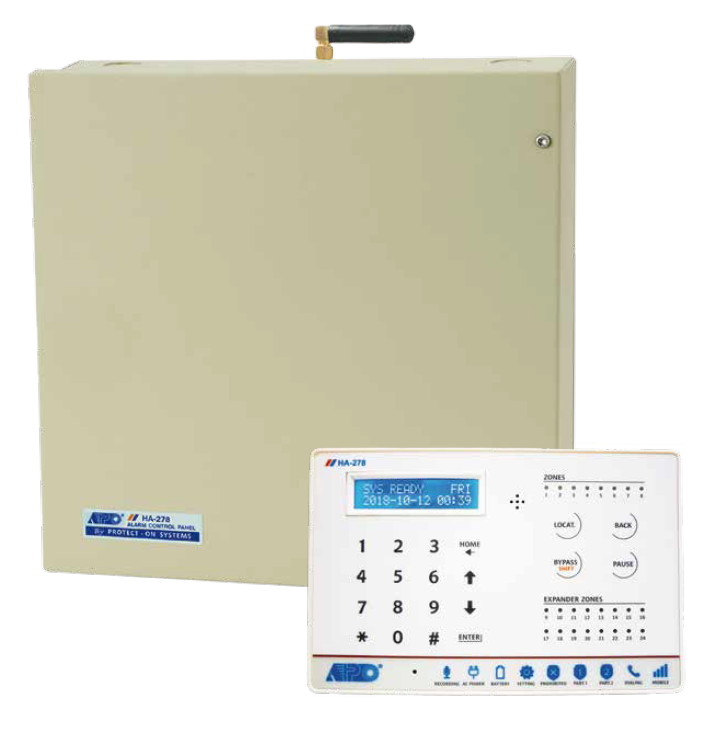

*All Versions above are included:                        1) 8-ZONE MAIN CONTROL PANEL        2) CONTACT ID^® COMMUNICATOR
3) 8+16 Zone HA-278-MK CONTROL KEYPAD    4) PSTN AUTO DIALER                            5) 100-240VAC POWER SUPPLY

*App "Alarm Plus" is only avaliable to HA-278 with Cellular Module

Demo Video: https://youtu.be/DhBSnKdD2o8

FEATURES FOR ALARM

• 8+16 Zones, Programmable for Instant, Delay (2 delay time available), 24 Hour Instant or 24 Hour Silent Alarm Reporting

• Compatiable to HX-2716 16-Zone Expander

• Contact ID^® Format Communicator, For Communication to MS-270 Monitor Station

• LCD Display Easy Programming Keypad

• Programmable Master Code and 8 User Codes


• All User Codes with Duress Function


• Protection Zones are Programmable for Single or Multiple Triggering


• Programmable Time for Exit, Entry (2 timings) and Alarm Duration


• Arm-Disarm Control from Keypad or Remotely from Any DTMF Telephone mobile Phone


• Each Protection Zone is Programmable for Response Time


• Exit and Entry Warning Beeps On-Off Options


• Arm-Disarm Ring Back Indication On-Off Options


• Instant Arming Codes for Home and Away Operations


• Built-in Dynamic Battery Charger and Tester with Auto or Manual Testing Options


• Two On Board Software Zone for Panic and Duress Alarms


• Maximum 4 Control Keypads Can Be Connected


• Home or Away Operation


• Forced to Arm or Arm Prohibited Options


• Handover Option for The Instant Zones


• Facilities for Driving Siren/Bell, Satellite Siren and Strobe Light


• Power Low Watchdog Resets System


• Non-Volatile Memory


• Can be Arm-Disarmed by Conventional Key Switch


• Full Feature Default Values in System for Ready Use


• 12V / 6.5Ah Back-up Battery (Not Included)


• 16.5VAC / 24VDC Operation


• Weight: 2.2 Kg (The Control Panel); 250 g (The Keypad)


• Dimensions: 268(H) X 263(W) X 78(D) mm (The Control Panel); 125(H) X 188(W) X 23(D) mm (The Keypad)

FEATURES FOR AUTO-DIALER

• Four 32 Digit Telephone Numbers for Auto-Dialer


• Two 32 Digit Telephone Numbers for Communicator


• Communicator Data in DTMF Format with Check-sum


• Tone or Pulse Dialing


• Programmable Pause Time between Any Digits


• Voice Message and Numeric Message are Possible


• 20 Seconds Non-Volatile User Programmable Voice Message


• Controllable Listen-in Duration


• Back-up or Non-back-up Dialing for Alarm Reporting


• Automatic Telephone Line Fault Detection


• Programmable Dialing Attempts, 8 Maximum


• Programmable SMS Message Repeats, 8 Maximum


• Telephone Numbers can be Tested Individually

STATUS: Mass Production
