Product Details

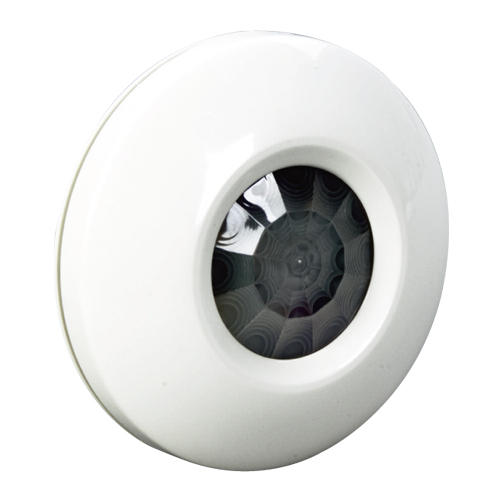

PIR-9236 /ES : CEILING MOUNT PIR MOTION DETECTOR

Product Information
PIR-9236 is a ceiling mount PIR motion detector designed to provide a low cost and reliable solution for general security system installation.

PIR-9236 employs dual-element pyro-electric sensor designed with alternate polarity pulse count circuitry which is controlled by an ASIC device. The alternate polarity signal processor inside the ASIC has very high rejection to the common mode noise due to radio interference or power surges. The ASIC device also provides the function of digital pulse counting, power-up delay and alarm output timing and controls. All of which maximize security and delivers unrivalled false alarm immunity.
Main Features

FEATURES & SPECIFICATIONS

  • Operating Voltage : 9-16VDC

  • Current Drain : 15mA at 12VDC

  • Walk Test LED Indicator

  • Alarm Output : N.C. Contact, 2-3 Seconds for Each Output

  • Power Up Delay : 2 Minutes with Flashing LED

  • Pulse Count : 1 or 2 Alternate Polarity Pulses in 12 Seconds

  • Detection Pattern : 11 Metres Diameter Cone Shape, 3.6 Metres from Ceiling

  • Operating Temperature : 0 Deg C to 55 Deg C

  • Dimensions: 86mm Diametre, 25.50mm in Depth


STATUS: Mass Production
