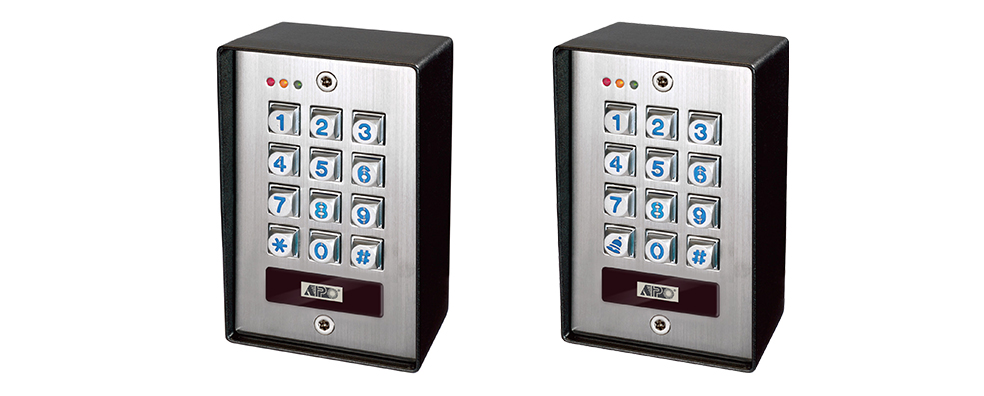

INTRODUCTION DK-2852 is a self-contained two output relay, vandal resistant and weatherproof keypad. It combines the digital keypad and proximity EM card reader in one unit. The keypad can plug in Wi-Fi Moduel (AP-02) as a Wi-Fi Keypad. The keypad has been designed for full feature stand alone access control applications. It is expandable to work with an optional decoder (DA-2800 or DA-2801) for high security split-decoded operation. It is also compatible with the auxiliary card reader (AR-2802) and the auxiliary keypad readers (AR-2806, AR-2807 and AR-2809) for upgrading a stand alone or split-decoded system to multi-station operation. The keypad is ideally for door strike and alarm arm-disarm controls. It is also a programmable industrial timer (from 1 second to over 24 hours) for automatic operator system. Two versions are available for DK-2852. They are denoted with a suffix letter “C” & “D” Demo Video: https://fb.watch/9hP4CdHEE-/ DK-2852C (Standard Version): Output Relay 1 – 5A Rating N.C. & N.O. Contacts for Door Lock Actuation Control Output Relay 2 – 1A Rating N.C. & N.O. Contacts for Auxiliary Device Control DK-2852D (Door Bell Button Version): Output Relay 1 – 5A Rating N.C. & N.O. Contacts for Door Lock Actuation Control Output Relay 2 – 1A Rating N.C. & N.O. Contacts for External Door Bell Actuation Control FEATURES
Dual Relay Output Full Feature Digital Keypad for Door Lock and Equipment Controls 12-24V AC/DC Auto Adjusted Wide Operation Voltage Range Built-in Real-Time-Clock Controls The Start and Stop Times in Daily Operation Stand-alone, Split-decoded and Multi-station Tri-Tech Operations Compatible with The Auxiliary Reader, Auxiliary Keypad and Split-decoder for System Expansion with Single Wire Connection of Their Common Data I/O Bus User Code, EM Card and EM card + User Code Concurrent Operations Compatible with125 Khz Manchester 64-bit EM4100 & EM4200 EM Cards and Keyfobs 5A/24VDC Contact Rating Form C Relay for Output 1 and 1A/24V DC Form C Relay for Output 2 Compatible with Fail-safe or Fail-secure Electric Door Lock Built-in Control Logic Circuit for High Security Dual Door Inter-lock System Timing Re-lock or Auto Re-lock for The Door After Entry Prevents “Tail-gate” Follower Door Forced Open Warning and Door Propped-up Warning Maximum 1,000 Users for Controlling Output 1 and 100 Users Each for Outputs 2 and 3 Multi-task Super User Code for Inhibiting (Refuse Access), Overriding Door Lock (Keep Door Open); and Operating The Outputs at Any Time and under Any Condition for Safety Duress Code for Door Opening and at The Same Time Reporting The Event of Duress 50 Visitor Codes for Temporary Workers and Visitors, Which Expire after Use or The Programmable Time of 1-99 Hours Three Programming Options for System Safety Lock-up after Successive False Code Entry Outputs Are Configurable with 1-99999 Seconds Auto Reset Mode or Start / Stop Mode. Auto or Manual User Code Entry Mode for User Convenience And Security Enhancement Pacifier Tone And Door Open Announcer Can Be OFF for Silent Environment Standby Flashing LED Indicator Can Be OFF for People Do Not Like Flashing LED at Night Four Egress Delay and Warning Options for User Convenience and Security Enhancement Key Button Active Signal Output for Triggering Optional Equipment Built-in Tamper Switch with N.C. Dry Contact Standard and Door Bell Button (Using Output 2 as Bell Actuation Contact) Versions Available Vandal Resistant Weatherproof Keypad with Back-lit Metal Key Buttons Die-Cast Aluminum Box for Surface Mount on Wall or Gooseneck Post Wi-Fi Module can be plugged in for more features
SPECIFICATIONS Operating Voltage: 12V-24V AC/DC, Auto adjusting Operating Current: 62mA (quiescent) to 130mA@12VDC 30mA (quiescent) to 61mA@24VDC Storage and Operation Temperature: -20 C to +70 C Storage and Operation Humidity: 5-95% relative humidity non-condensing Working Environment & Ingress Protection: All weather, IP-66 Number of Users: Output 1 – 1,000 (Codes and/or Cards) + 50 Duress Codes Output 2 – 100 (Codes and/or Cards) + 10 Duress Codes (DK-2852C) Proximity Card: Standard EM Card or Keyfob, 125Khz Number of Visitor Codes: 50, programmable for one time or with time limit Timings for Code Entry and Card Reading: 10 seconds waiting for next digit entry 30 seconds waiting for code entry after card reading The Timers: 1-99,999 Seconds (Over 24 Hours possible) Independent Programmable Timers for O/P 1 & 2 Egress Button: Programmable for Instant, Delay with Warning Momentary or Holding Contact for Exit Delay Input Sensing Terminals: a) Door position, b) Egress, c) O/P 1 inhibit Output Control Terminals: Transistor Open Collector 24VDC/100mA sink Max for the following outputs a) Duress, b) Key Active, c) Inter-lock Output Contact Ratings: Output Relay 1 – N.C. & N.O. dry contacts, 5A/24VDC Max. Output Relay 2 – N.C. & N.O. dry contacts, 1A/24VDC Max. Tamper Switch – N.C. dry contact, 50mA/24VDC Max. Dimensions: 125(H) X 79(W) X 46/54(D)mm Weight: 520g net Housing: Die-Cast Aluminum, Powder-paint coating Faceplate Material: 1.5mm stainless steel
Specifications are subject to change for modification without notice
|
