INTRODUCTION

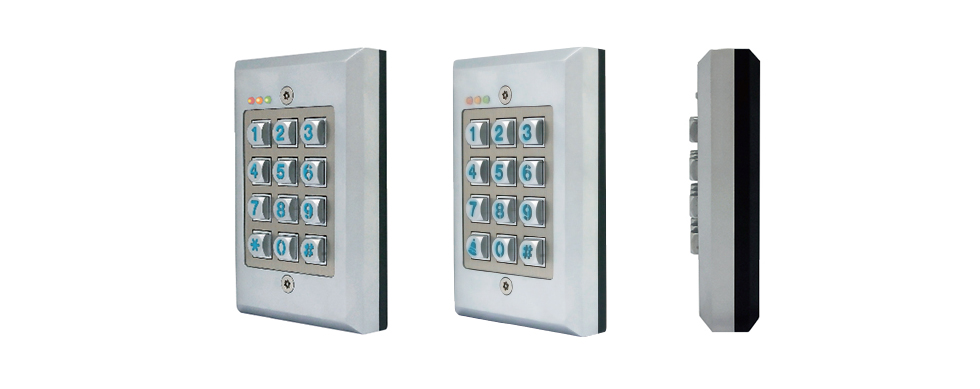

DK-2831 is a self-contained dual output, vandal resistant, weatherproof keypad mainly designed for operating electric door lock in access control; and remote control of other equipment, such as alarm arm-disarm. The keypad’s operation timer is programmable from of 1 second to over 24 hours that is also good for automatic operator system in industry. The keypad can plug in Wi-Fi Module (AP-02) as a Wi-Fi Keypad.
The keypad employs the DK-2800 MK-II Tri-Tech operation software that makes it compatible with the auxiliary reader, auxiliary keypad and the split-decoder for Standalone, Split-decoded and Multi-station operations in system expansions.

Demo Video: https://fb.watch/9hP4CdHEE-/

Output 1 is a Form C relay with 1A/24VDC contact rating. It is mainly for electric door lock actuation and is virtually compatible with any Fail-safe or Fail-secure electric lock.

Output 2 is also a Form C relay with 1A/24VDC contact rating. In the “Standard” version (DK-2831A), it is an auxiliary output contact prepared for equipment control. In the “Bell Button” version (DK-2831B), it is an output contact for actuating a low power external electronic door chime. DK-2831 has die-cast metal housing that is designed for surface mount on wall to match with office and home decors.

DK-2831B – Door Bell Button Version

 FEATURES

• Two Relay Output Digital Keypad for Door Lock and Equipment Controls

• 12-24V AC/DC Auto Adjusted Wide Operation Voltage Range

• Built-in Real-Time-Clock Controls The Start and Stop Times in Daily Operation

• Stand-alone, Split-decoded and Multi-station Tri-Tech Operations

• Compatible with The Auxiliary Reader, Auxiliary Keypad and Split-decoder for System Expansion Simply with Single Wire Connection of Their Common Data I/O Bus

• Accepts 125 Khz EM Card Operation Via Optional Auxiliary Card Reader

• Compatible with Fail-safe or Fail-secure Electric Door Lock

• 1A / 24VDC Contact Rating Form C Relays for The Two Outputs; N.C./N.O. Output Contact Selectable with Jumper

• Timing Re-lock or Auto Re-lock for The Door After Entry Prevents “Tail-gate” Follower

• Door Forced Open Warning and Door Propped-up Warning

• Maximum 1,000 Users for Controlling Output 1 and 100 Users for Outputs 2

• Multi-task Super User Code for Inhibiting (Refuse Access), Overriding Door Lock (Keep Door Open); and Operating The Outputs at Any Time and under Any Condition for Safety

• Duress Code for Door Opening and at The Same Time Reporting The Event of Duress

• 50 Visitor Codes for Temporary Workers and Visitors, Which Expire after Use or The Programmable Time of 1-99 Hours

• Three Programming Options for System Safety Lock-up after Successive False Code Entry

• Outputs Are Configurable with 1-99999 Seconds Auto Reset Mode or Start / Stop Mode.

• Auto or Manual User Code Entry Mode for User Convenience And Security Enhancement

• Alarm Signal Output for Triggering Optional Equipment

• Pacifier Tone And Door Open Announcer Can Be OFF for Silent Environment

• Standby Flashing LED Indicator Can Be OFF for People Do Not Like Flashing LED at Night

• Four Egress Delay and Warning Options for User Convenience and Security Enhancement

• Built-in Tamper Switch with N.C. Dry Contact

• Standard and Door Bell Button (Using Output 2 as Bell Actuation Contact) Versions Available

• Vandal Resistant Weatherproof Keypad with Back-lit Metal Key Buttons

• Die-Cast Surface Mount Metal Housing

• Wi-Fi Module can be plugged in for more features

 SPECIFICATIONS

• Operating Voltage:
  12V-24V AC/DC, Auto adjusting

• Operating Current:
  16mA (quiescent) to 78mA (Maximum)

• Operation Temperature:
  -20 C to +70 C

• Environmental Humidity:
  5-95% relative humidity non-condensing

• Working Environment & Ingress Protection:
  All weather, IP-65

• Number of Users:
  Output 1 – 1,000 (Codes) + 50 Duress Codes
  Output 2 – 100 (Codes) + 10 Duress Codes (DK-2831A only)

• Number of Visitor Codes:
  50, programmable for one time or with time limit

• Timings for Code Entry:
  10 seconds waiting for next digit entry

• The Timers:
  1-99,999 Seconds (Over 24 Hours possible) Independent Programmable Timers for O/P 1 & 2

• Egress Button:
  Programmable for Instant, Delay with Warning and/or Alarm
  Momentary or Holding Contact for Exit Delay

• Input Sensing Terminals:
  a) Door position, b) Egress

• Output Control Terminals:
  Transistor Open Collector 24VDC/100mA sink Max for the following outputs
  a) Duress, b) Alarm

• Output Contact Ratings:
  Output Relay 1 – N.C. & N.O. dry contacts, 1A/24VDC Max.
  Output Relay 2 – N.C. & N.O. dry contacts, 1A/24VDC Max.
  Tamper Switch – N.C. dry contact, 50mA/24VDC Max.

• Dimensions:
  120(H) X 80(W) X 27(D)mm

• Weight:
  500g net

• Housing:
  Zinc alloy die-casting faceplate with sealed aluminum back cover

Specifications are subject to change for modification without notice
