INTRODUCTION

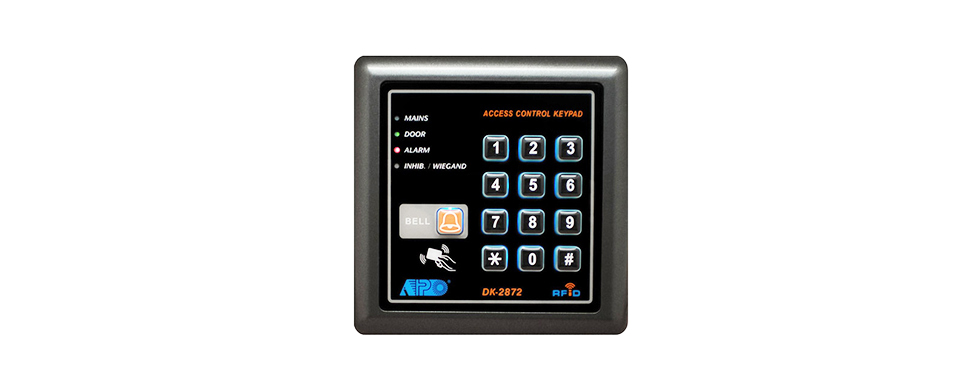

DK-2872 MK-II+ is a self-contained full feature digital access control keypad that combines proximity EM card reader in one unit. The keypad can plug in Wi-Fi Module (AP-01 / AP-02) as a Wi-Fi Keypad.

The keypad has three outputs. The output 1 is a solid state relay selectable to drive Fail-safe or Fail-secure electric lock. Solid state relay gives longer service life and prevents sabotage of energizing the output relay to open the door with a strong magnet. The output 2 is a standard relay with N.C. and N.O. dry contacts for auxiliary controls. The output 3 is a transistor open collector output with maximum sink current of 100mA for driving auxiliary device. It also has a N.O. relay dry contact output for driving an external door bell.

The keypad is employing the Tri-Tech design approach capable for system expansion. It works perfectly in stand alone operation, split-decoded operation for security enhancement with the optional decoder, and multi-station operation for user convenience with the auxiliary keypad-readers.

The keypad is ideal for access control and alarm system arm-disarm control. It is also a programmable industrial timer (from 1 second to over 24 hours) for automatic operator system.

Demo Video: https://fb.watch/9hP4CdHEE-/

Output 1     : Solid State Relay Output for Fail-safe or Fail-secure Electric Lock
Output 2     : Standard N.C. & N.O. Dry Relay Contacts
Output 3     : Solid State Open Collector Output
Bell Button : N.O. Dry Relay Contact

FEATURES
•  Three Output Full Feature Digital Keypad for Door Lock and Equipment Controls
•  12VDC Operation, Compatible with Fail-safe or Fail-secure Electric Door Lock
•  3A / 16VDC Maximum Power Rating Solid State Door Lock Driver for Long Service Life
•  Built-in Real-Time-Clock Controls The Start and Stop Times in Daily Operation
•  Stand-alone, Split-decoded and Multi-station Tri-Tech Operations
• Compatible with The Auxiliary Reader, Auxiliary Keypad and Split-decoder for System Expansion Simply with Single Wire Connection of Their Common Data I/O Bus
•  User Code, EM Card and EM card + User Code Concurrent Operations
•  Compatible with 125 Khz Manchester 64-bit EM4100 & EM4200 EM Cards and Keyfobs
•  26-bit, 34-bit or 37-bit Wiegand Data Output Format Selectable
•  1A/24V DC Contact Rating Form C Relay for Output 2 and Open Collector for Output 3
•  Built-in Bell Button with 1A/24V Rating N.O. Dry Contact for External Door Chime Actuation
•  Built-in Control Logic Circuit for High Security Dual Door Inter-lock System
•  Timing Re-lock or Auto Re-lock for The Door After Entry Prevents “Tail-gate” Follower
•  Door Forced Open Warning and Door Propped-up Warning
•  Maximum 1,000 Users for Controlling Output 1 and 100 Users Each for Outputs 2 and 3
•  Multi-task Super User Code for Inhibiting (Refuse Access), Overriding Door Lock (Keep Door Open); and Operating The Outputs at Any Time And under Any Condition for Safety
•  Duress Code for Door Opening and at The Same Time Reporting The Event of Duress
•  50 Visitor Codes for Temporary Workers and Visitors, Which Expire after Use or The Programmable Time of 1-99 Hours
•  Three Programming Options for System Safety Lock-up after Successive False Code Entry
•  Outputs Are Configurable with 1-99999 Seconds Auto Reset Mode or Start / Stop Mode.
•  Auto or Manual User Code Entry Mode for User Convenience And Security Enhancement
•  Pacifier Tone And Door Open Announcer Can Be OFF for Silent Environment
•  Standby Flashing LED Indicator Can Be OFF for People Do Not Like Flashing LED at Night
•  Six Egress Delay and Warning Options for User Convenience and Security Enhancement
•  Alarm or Key Button Active Signal Output for Triggering Optional Equipment
•  Built-in Tamper Switch with N.C. Dry Contact
•  Surface Mount Weatherproof Plastic Housing Painted in Metallic Black Color

•  Wi-Fi Module can be plugged in for more features

SPECIFICATIONS
•  Operating Voltage:
   12V DC Nominal; 11-15V DC

•  Operating Current:
   75mA (quiescent) to 110mA

•  Operation Temperature:
   -20  C to +70  C

•  Environmental Humidity:
   5-95% relative humidity non-condensing

•  Working Environment & Ingress Protection:
   All weather, IP-55

•  Number of Users:
   Output 1 – 1,000 (PINs and/or Cards) + 50 Duress Codes
   Output 2 – 100 (PINs and/or Cards) + 10 Duress Codes
   Output 3 – 100 (PINs and/or Cards) + 10 Duress Codes

•  Proximity Card:
   Standard EM Card or Keyfob, 125Khz

•  Number of Visitor Codes:
   50, programmable for one time or with the time limit

•  Timings for Code Entry and Card Reading:
   10 seconds waiting for next digit entry
   30 seconds waiting for code entry after card reading

•  The Timers:
   Three 1-99,999 Seconds (Over 24 Hours possible) Independent Programmable Timers for O/P 1, 2 & 3

•  Egress Button:
   Programmable for Instant, Delay with Warning and/or Alarm
   Momentary or Holding Contact for the Exit Delay

•  Input Sensing Terminals:
   a) Door position, b) Egress, c) O/P 1 inhibit

•  Output Control Terminals:
   Transistor Open Collector 24VDC/100mA sink Max for the following outputs
   a) Duress, b) Alarm, c) Key Active, d) Output 3, e) Inter-lock

•  Output Contact Ratings:
   Output Relay 1 – Solid State Relay, Fail-safe or Fail-secure selectable, 3A/16 VDC Max.
   Output Relay 2 – N.C. & N.O. dry contacts, 1A/24VDC Max.
   Door Bell Relay – N.O. dry contact, 1A/24VDC Max.
   Tamper Switch – N.C. dry contact, 50mA/24VDC Max.

•  Dimensions:
   117(H) X 117(W) X 28(D)mm

•  Weight:
   260g net

•  Housing:
   ABS Plastic box

Specifications are subject to change for modification without notice
