FEATURES

• Low Noise Dual Element Pyro-Sensor


• Alternate Polarity Signal Processing


• Security Logics Are Integrated in The MCU Device


• Surface-Mounted Component Technology, Greater EMI and RFI Immunity


• Normal or Pulse Count Response for Harsh Environments

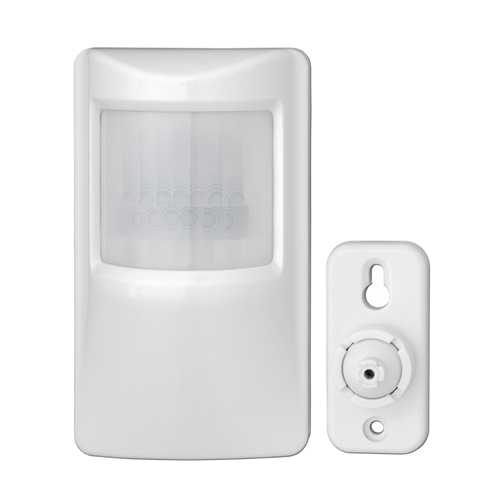

• Supplied with Swivel Mounting Bracket for Angle Adjustment


• An Improved Version to Replace PIR-9038 & PIR-8612

SPECIFICATIONS

• Operating Voltage : 8-16VDC


• Current Drain : 15mA at 12VDC


• Power-up Delay : 2 Minutes Typical with Flashing LED indication


• Alarm Output : N.C. or N.O. Contact, 28VDC/100mA Rating


• Alarm Period : 2-3 Seconds for Each Detection Output


• Power Up Delay : 2 Minutes with Flashing LED


• Pulse Count : 1 or 2 Alternate Polarity Pulses in 10 Seconds


• Detection Pattern : 12 X 12 Metre, 90 Deg Maximum


• Tamper Switch : N.C. Contact with 10 Ohm in Line Resistor. 12VDC/50mA Rating


• Operating Temperature : 0 Deg C to 55 Deg C


• Dimensions: 105(H) X 60(W) X 42(D) mm

STATUS: Mass Production
